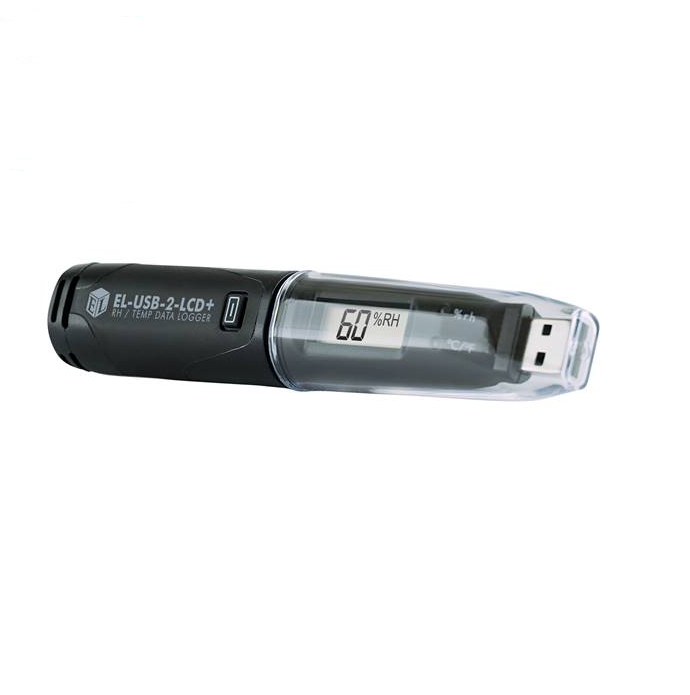

High Accuracy Humidity and Temperature Data Logger with LCD. Includes Temperature and Humidity Calibration Certificate - EL-USB-2-LCD+ CAL-T/H
Out of stock with supplier, this item can't be ordered at this point in time.
- Higher accuracy sensor when compared to the EL-USB-2-LCD
- 0 to 100%RH measurement range
- -35 to +80°C (-31 to +176°F) measurement range
- High contrast LCD
- Immediate, delayed and push-to-start logging
- Includes calibration certificate for temperature and humidity
This standalone data logger measures and stores up to 16,379 relative humidity and 16,379 temperature readings over 0 to 100%RH and -35 to +80°C (-31 to +176°F) measurement ranges. The user can easily set up the logger and view downloaded data by plugging the data logger into a PC’s USB port and using the supplied software. Relative humidity, temperature and dew point (the temperature at which water vapour present in the air begins to condense) data can then be graphed, printed and exported to other applications.
The high contrast LCD can show a variety of temperature and humidity information. At the touch of a button, the user can cycle between the current temperature and humidity, along with the maximum and minimum stored values for temperature and humidity. The data logger is supplied complete with a long-life lithium battery, which can typically allow logging for up to 1 year. The data logger is protected against moisture to IP67 when the protective cap is correctly fitted.
The data logger configuration software is compatible with Windows 2000/XP/Vista/7.
Download the latest version of the configuration and graphing software from the link below.
Due to high demand for this product at present we suggest that you contact Lascar directly for up to date lead-time information before ordering online.
| Specification | Min. | Typ. | Max. | Unit | |
|---|---|---|---|---|---|
| Relative Humidity | Measurement range | 0 | 100 | %RH | |
| Repeatability (short term) | ±0.1 | ||||
| Accuracy (overall error) | ±2* | ±4 | |||
| Internal resolution | 0.5 | ||||
| Long term stability | 0.5 | ||||
| Temperature | Measurement range | -35 (-31) | +80 (+176) | °C (°F) | |
| Repeatability | ±0.1 (±0.2) | ||||
| Accuracy (overall error) (20-80%RH) | ±0.3 (±0.6) | ±1.5 (±3) | |||
| Internal resolution | 0.5 (1) | ||||
| Dew Point | Accuracy (overall error) (25°C, 40-100%RH) | ±1.1 (±2)** | °C (°F) | ||
| Logging rate | every 10s | every 12hr | - | ||
| Operating temperature range *** | -35 (-31) | +80 (+176) | °C (°F) | ||
| 1/2AA 3.6V Lithium Battery Life | 1 † | year | |||
* This specifies the overall error in the logged readings for relative humidity measurements between 20 and 80%RH
** This specifies the overall error in the calculated dew point, for realtive humidity measurements between 40 and 100%RH at 25°C
*** At temperatures below -20ºC (-4ºF) the LCD will exhibit slower response times of approximately 10 seconds
† Depending on sample rate, ambient temperature and use of LCD
