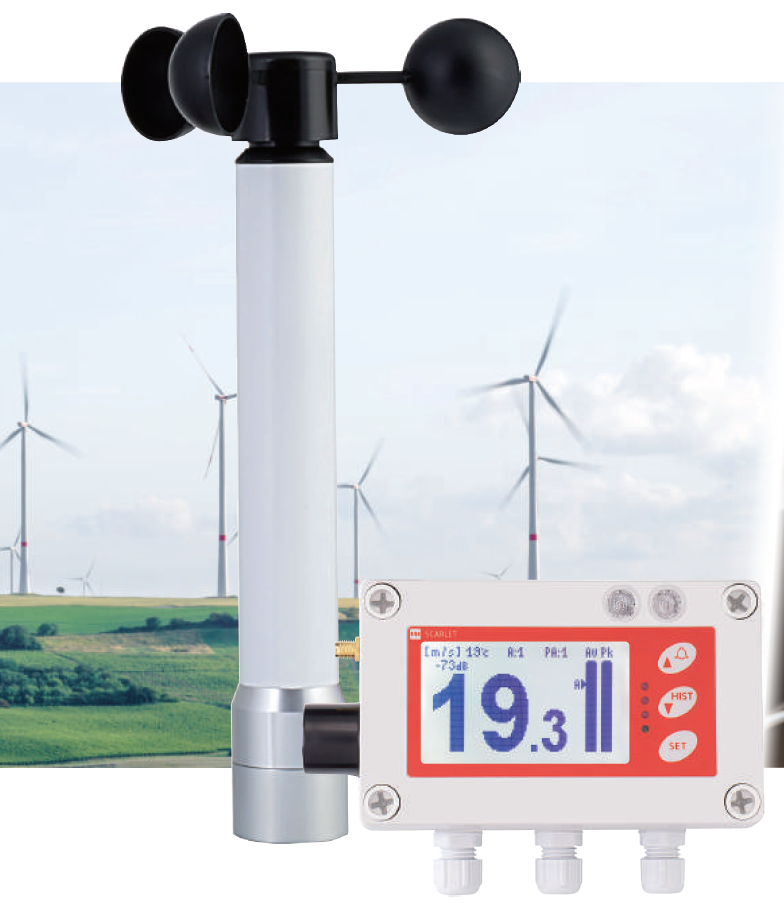

Scarlet WindPro Wireless Anemometer - WindPro
by Scarlet Tech
Save $169.39
$3,387.89
$3,218.50
Order now, stock will leave our store in the next 2-4 weeks
Email The Electric Burst Team For More Availability Information
SKU WindPro
Features:
- Synchronized data on monitor display and web portal
- Long range transmission distance. Up to 500 m (410XB up to 1300 m)
- Extremely easy mounting with magnetic & self-leveling mounting
- 4 years sensor battery life.
- Integrated alarm & pre-alarm warning lights
- Built-in audible alarm
- 3 programmable alarm relay outputs
- Backlighted graphic LCD with large digits
Specifications:
- Wind speed measurement range: 0.1 - 50.0 m/s
- Wind direction measurement range: 0 to 359
- Temperature measurement range: -30 to 60 C
- Wind speed units: m/s, km/h, knots, mph
- Temperature units: C and F
- Wind speed averaging period: selectable 2 s, 10 s, 30 s
- Wind direction averaging period: 10 s
- Wind speed resolution: 0.1 m/s
- Wind direction resolution: 10
- Temperature resolution: 10 C
- Wind speed accuracy: typ. +/- 3 %
- Wind direction accuracy: +/- 3 degrees
- Temperature accuracy: +/- 1
- Operating voltage: 12-24 V DC
- Power consumption: max 300 mA
- Operating range (with standard range sensor): up to 500 m
- Operating range (with extended range sensor): up to 1300 m
- Operating range (with connected Yagi antenna): 3 - 5 x nominal range
- Operating Frequency: 868 MHz
- Temperature operating range: 30 to 60 C
- Outputs (Relay): 4 relay, contact rating 2 A / 24 V
- Outputs (Signal output (4-20mA)): 4...20 mA, (not isolated, common ground with supply)/4 mA = 0 m/s/20 mA = programmable 10 - 50 m/s/Error current: 3,6 mA (if signal from sensor is missing)
- Sound signal (integrated): 85 dB
- Antenna input: 50 Ohm, SMA connector
- Measuring rate: every 2 sec
- Wi-Fi Module: ESP-WRO OM-02, 802.11 b/g/n
- Wi-Fi Frequency range: 2.4 GHz to 2.5 GHz
- WiFi Output power: Min 13dbm,Max 15dbm
- Material casing: PC (Polycarbonate)
- Dimensions receiver: 130 × 80 × 36 mm
- Weight: 320 g
